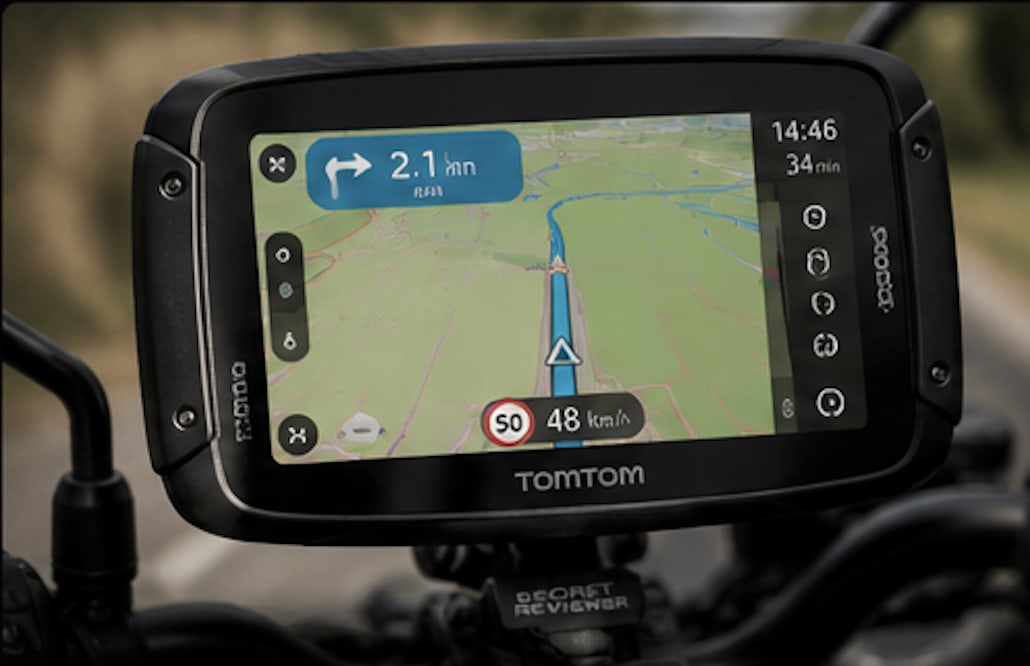

[MOUNTING] The TomTom proprietary mount clicks in and out in three seconds. Remove it every time you park in an unsecured location. The RAM-compatible arm is solid — no vibration wobble even on Doi Inthanon's corrugated mountain sections.

[WIRING] Connect to an ignition-switched circuit via your auxiliary fuse box. Running purely on internal battery gives 2–3 hours maximum. A full touring day is 8–12 hours. Wire it in properly or you will run out of power mid-route.

[MAP UPDATES] Use TomTom MyDrive to sync the latest maps before every major trip. Rural SEA data improves slowly. Always save your route to Google Maps offline as a secondary layer — especially for remote northern Thailand, Laos border areas, and any route that deviates from main highways.

[NIGHT RIDING] Auto night mode activates at dusk. Contrast is strong without being blinding. The screen doesn't wash out your night vision the way a bright phone screen can at 2:00 AM on the NSH.

[DON'T REPEAT MY MISTAKE] I spent money on two car GPS units before this. Both failed. The price difference between a car GPS and a proper motorcycle GPS is not worth the grief. Buy the right tool once.

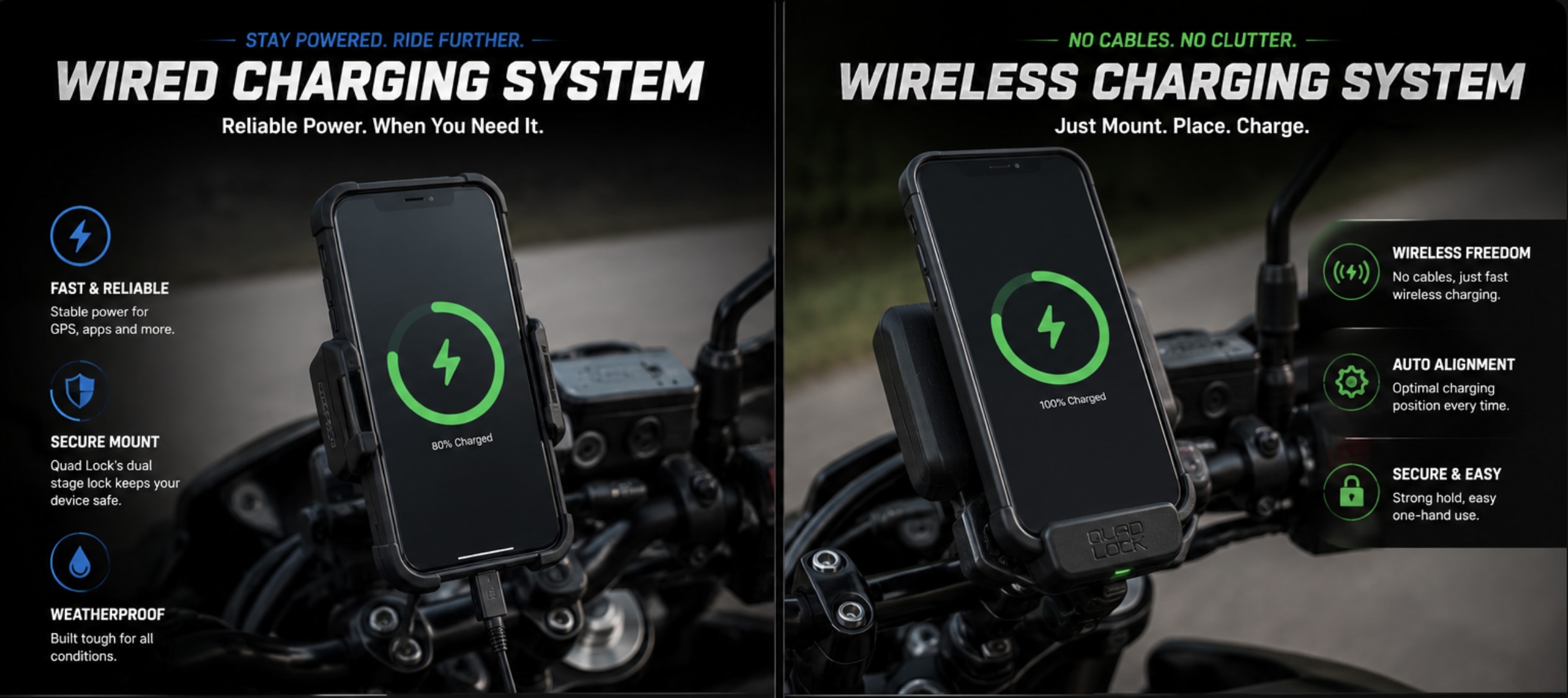

[WIRING PROTOCOL] Always tap into an ignition-switched circuit through your auxiliary fuse box. This gives you clean, protected, independent power that automatically cuts when you turn the key off. Wiring directly to battery positive without a switched circuit means your charger runs overnight and can drain your battery by morning.

[FUSE SIZING] A QC3.0 USB charger draws around 2–3A. A wireless 15W charger draws around 1.5A. Fuse at 5A per circuit — gives headroom without being undersized. If you're running a charger and a dashcam on the same circuit, fuse at 10A and use heavier gauge wire.

[THAILAND LESSON] My phone hit 85°C surface temperature on a clear day in Chiang Mai with the screen on for navigation. At that temperature, iOS throttles charging to protect the battery. Keeping the phone off the fairing surface and in a vented mount dropped surface temps by roughly 15 degrees. Noticeable charge rate improvement.

[CAMERA DRAIN] If you're also running an action camera and a dashcam, budget your fuse box circuits carefully. Three devices running simultaneously can easily pull 8–10A. Plan your wiring before you install anything, not after.

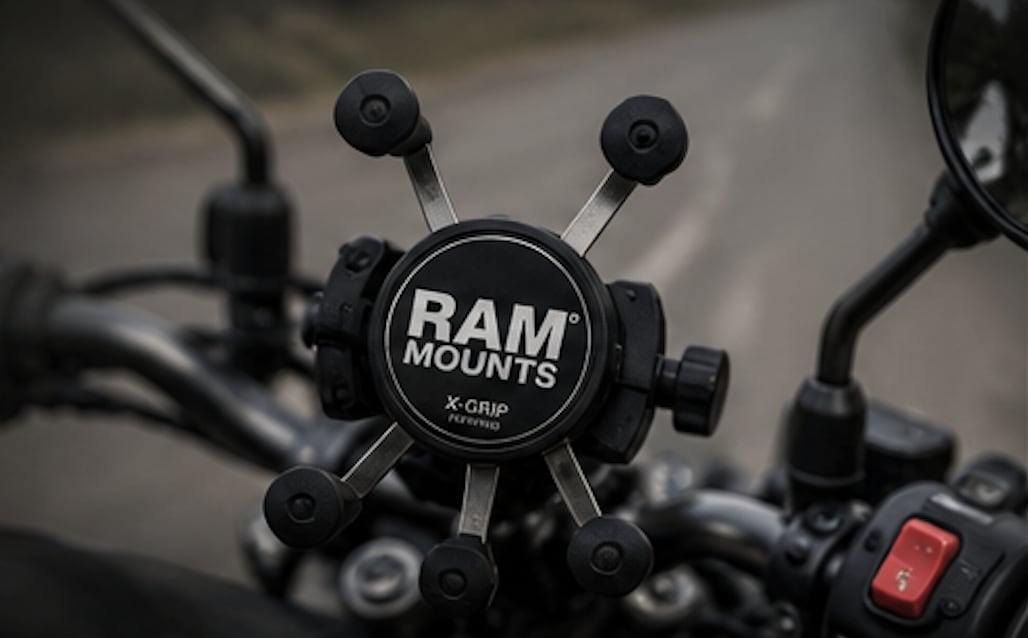

[KNOCKOFF IDENTIFICATION] Genuine RAM has crisp machining marks on the ball and socket, consistent anodising colour, and a firm-but-smooth rotation feel. Knockoffs feel gritty when you rotate the ball — that's the soft alloy starting to wear from day one. Weight is also a tell: genuine RAM is noticeably heavier for the same component size.

[BAR POSITION LOGIC] GPS goes left of centre — you glance left to check your route, same direction as your mirrors. Phone goes right side, slightly lower. Splitting attention evenly means no sustained head-turn in one direction while riding. Small ergonomic detail that matters over a 10-hour day.

[ACTION CAMERA NOTE] If you want bar-mounted action footage, use a RAM short arm with a camera-specific head and set expectations appropriately. The MT-03 engine vibration at 6,000–8,000 RPM produces a frequency that shows up in footage as a micro-judder. EIS on modern cameras handles it at low speed, less so at highway cruise. Helmet mount remains the gold standard for usable touring footage.

[MAINTENANCE] RAM mounts need essentially zero maintenance beyond the pre-ride torque check. Clean the ball socket annually with a dry cloth. Do not lubricate — the friction between ball and socket is intentional. Oil or grease will cause the mount to slip under vibration.

[WIRING] Wire it to the same ignition-switched auxiliary fuse box as your charging port. It draws low current — under 2A — so it can share a circuit with the charger if fused correctly. Do not wire to battery positive without a relay or it will drain overnight.

[PAIRING RELIABILITY] Auto-pairing works consistently once set up. Occasionally the first boot after a long gap needs a manual reconnect from the iPhone Bluetooth menu. This is an iOS quirk, not a unit defect — happens less after the initial few days of daily use.

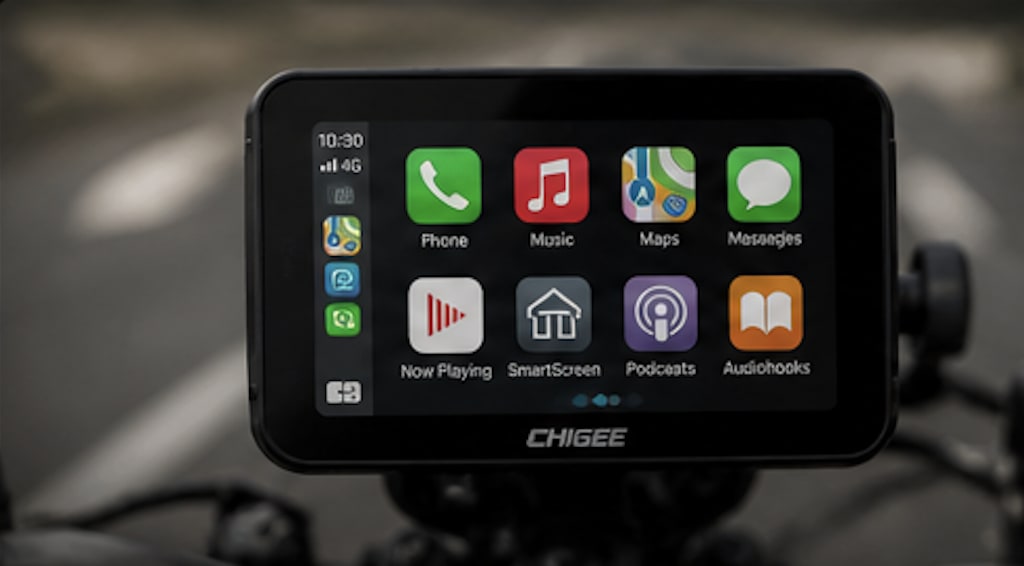

[GPS HIERARCHY] Use the TomTom Rider 550 as primary navigation on long cross-border tours. Use the CS5 Pro as the secondary screen for music and calls. On pure commuting days in Singapore where connectivity is reliable, the CarPlay unit alone is more than sufficient.

[GLOVE OPERABILITY] Capacitive screen responds to bare fingers better than gloves. Workable with thinner summer gloves. Heavy touring gloves require deliberate taps — not ideal for inputs at speed. Pre-set your playlist and route before moving off.

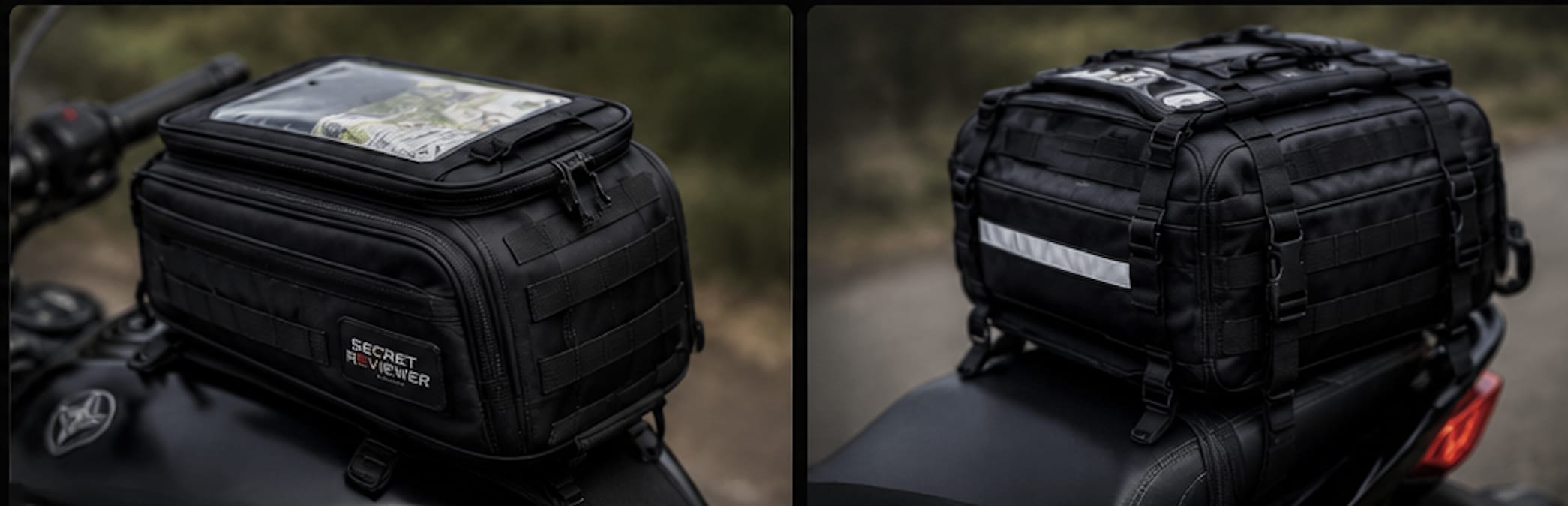

[TAIL BAG SECURITY] The multi-point strap system on the tail bag is solid if you tighten it properly before moving off. Check tension after the first 50km — straps settle under load. A loose tail bag at highway speed shifts laterally and changes the rear-end feel. Takes two minutes to check. Do it every morning on tour.

[RAIN COVER] Soft bags are not waterproof by default. The Thailand run hit afternoon downpours almost daily above Chiang Rai. Use the included rain cover every time clouds build — by the time you feel the first drops it's already too late. Waterproof packing cubes inside the bag add a second layer for electronics and documents.

[TANK BAG AND FUELLING] Magnetic tank bags must be removed before fuelling if using a magnetic mount. Build this into the routine — remove at pump, refuel, remount. Forgetting once means a petrol-soaked bag bottom. Strap-mounted tank bags don't have this issue.

[THAILAND LOAD-OUT] On the Thailand tour the tail bag ran at near full capacity — about 35–40L equivalent. Clothing, rain gear, spare gloves, basic tools, and overnight kit. Still had enough room in the tank bag for documents, phone backup battery, and daily snacks. No panniers, no top box, no rack. Bike handled fine.
